Double Pantry Faucet, Deck Mount, 8″ Centers, 5 11/16″ WIDE Rigid Gooseneck, Lever Handles
$84.78
Double lever deck mounting style pantry faucet with 8″ centers and attached 5-11/16″ Rigid Gooseneck spout
The complete assembly is made of lead-free Brass and chrome plated as well.
Only 4 left in stock (can be backordered)
Available on backorder
Available on backorder
- Details
- Specifications
- Replacement Parts
Double Pantry Faucet, Deck Mount, 8″ Centers, 5 11/16″ WIDE Rigid Gooseneck, Lever Handles
Double pantry deck mount faucet for kitchens, pantries, and more with 8″ centers. Mounts easily through two drill holes on the sink or countertop surface.
Double levers allow both hot and cold water line connections. The levers also have a handle to rotate it easier to open and shut off water flow.
The gooseneck spout is 5-11/16″ wide and rigid in style.
Refreshing simple design and the chrome plating over lead-free Brass gives a clean look also.
Option are:-
Features
- Swivel Gooseneck Nozzle Stream regulator outlet
- 1/2″ NPT Female Eccentric Flange
- Lever Handles with Hot and Cold indicators
- Compression cartridges with spring checks
- Adjustable centers from 7-3/4″ to 8-1/4″
- Free flow Aerator
- Warranty 3 Years
Performance Data:-
Pressure : 20-125 PSI
Temperature : 40° to 140° F
Replace free flow aerators with the below Aerators as per your requirement
Warnings / Instructions
| Material | Lead Free Brass |
| Finish | Polished Chrome |
| Series | Platinum |
| Mount Type | Deck Mount |
| Body | 8 Inch Centers |
| Catridge Spindle | Classic |
| Nozzle Type | Rigid Gooseneck |
| Nozzle Length | 5-11/16 Inches |
| Handle | Double Lever Handle |
| Inlet | 1/2″ Npt Female |
Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
C8137 | Cold Index (Blue) | Sign In To View Price | In Stock | |
| 2 |
|
KP-NB68-25F6 | Lever for Pre Rinse Spindle Assembly | Sign In To View Price | In Stock | |
| 3 |
|
6O-E71C-9QCD | Quarter Turn Cartridge w/ spring check LHC (COLD) | Sign In To View Price | out of stock | |
| 4 |
|
C8121 | 1/2″ NPT Female Eccentric Flange Assembly With Washer | Sign In To View Price | In Stock | |
| 5 |
|
0B-IE1E-SF0D | Quarter Turn Cartridge w/ spring check RHC(HOT) | Sign In To View Price | out of stock | |
| 6 |
|
C8136 | Hot Index (Red) | Sign In To View Price | In Stock | |
| 7 |
|
C8139 | Oval ( Raised Head) Nylock Screw for Handle | Sign In To View Price | out of stock | |
| 8 |
|
C8134.09 | Seat Washer for Spindle Assembly | Sign In To View Price | In Stock |
Downloads

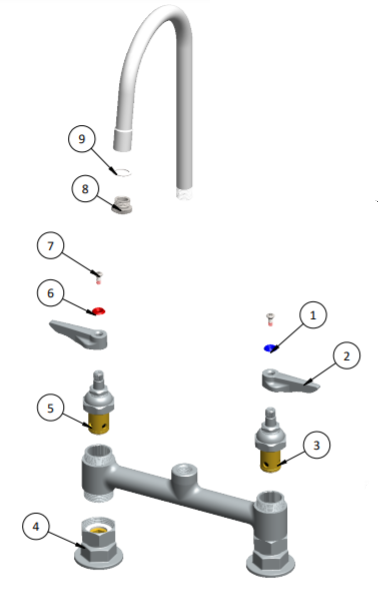

- Exploded ViewExploded View Download Exploded View
- Warranty : Three Year (Limited)Warranty : Three Year (Limited) Download Warranty : Three Year (Limited)
- Specification Sheet Specification Sheet Download Specification Sheet
- Line Drawing Line Drawing Download Line Drawing
- CAD FileCAD File Download CAD File
