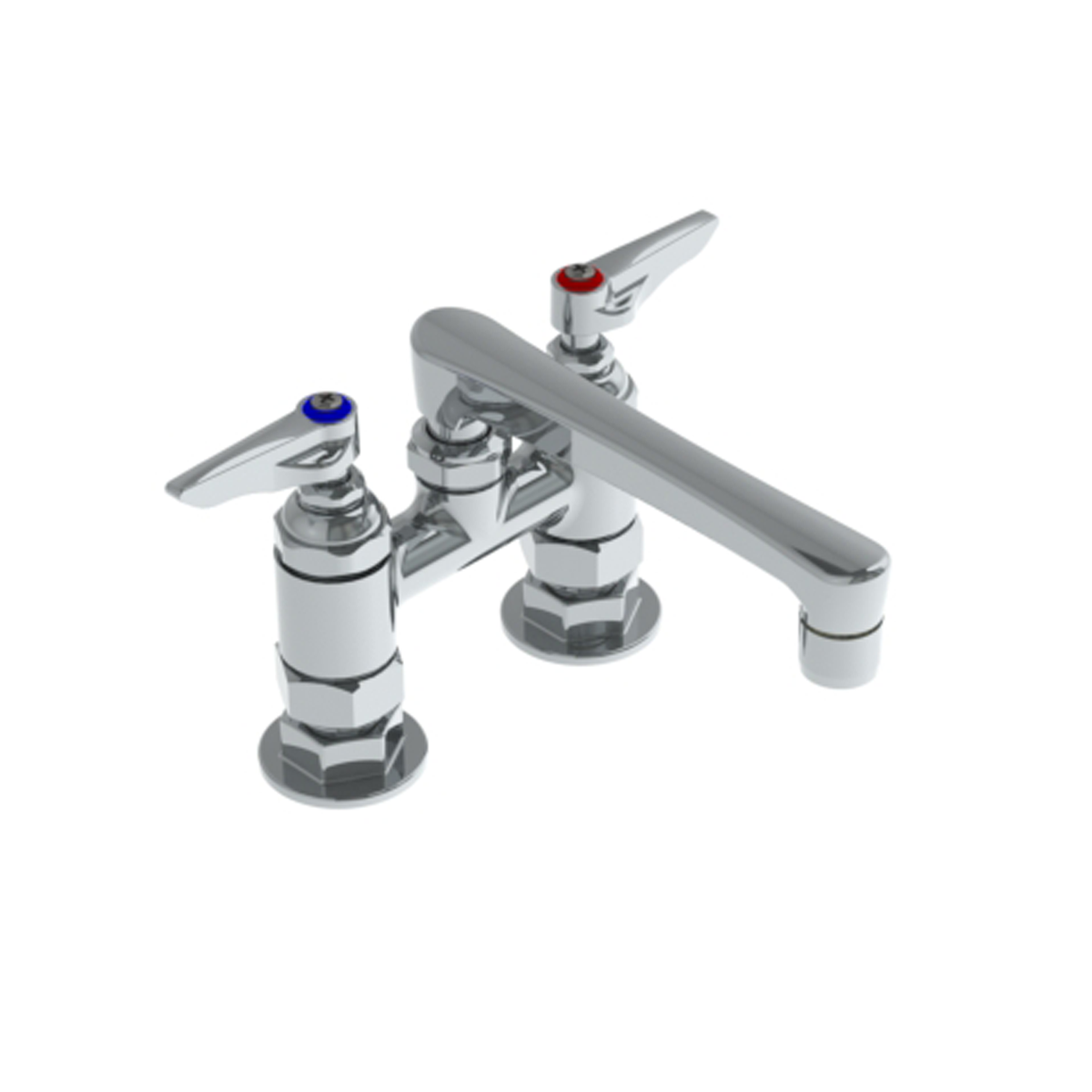

Double Pantry Faucet, Double Hole Base, 4″ Deck Mount, 8″ Cast Spout
Sign In To View Price
Double Pantry Deck mount Faucet with 4″ Centers. The base is two hole to connect to two water lines – Hot and Cold.
Includes a 8″ cast spout. The entire assembly is of Chrome plated Brass.
Only 1 left in stock
Only 1 left in stock
- Details
- Specifications
- Replacement Parts
Double Pantry Faucet, Double Hole Base, 4″ Deck Mount, 8″ Cast Spout
Deck mount style double hole pantry faucet. Easily install with simple tools through two holes made either on the sink or the countertop itself.
The double pantry allows connecting to both hot and cold water lines with 4″ centers. Also includes an 8 inch. a spout of cast Brass.
The entire faucet has chrome plating over the surface that is durable and attractive.
Place in pantries, kitchens, and other places for a handy water source.
Options Available:-
| Double Pantry Faucet, Double Hole Base, 4″ Deck Mount | |
| Part No. | Description |
| C8577 | Double Pantry Faucet, Double Hole Base, 4″ Deck Mount, 6″ Cast Spout |
Features
- swivel cast spout regulator outlet
- 1/2 NPT female eccentric Flange
- Lever handle with hot and cold indexes
- Compression Cartridges with spring checks
- adjustable center from 3-3/4″ to 4-1/4″
- with free flow outlet aerator
- warranty 3 YEARS
Performance Data:-
Pressure : 20-125 PSI
Temperature : 40° to 140° F
Replace free flow aerators with the below Aerators as per your requirement
Warnings / Instructions
| Material | Lead Free Brass |
| Finish | Polished Chrome |
| Series | Platinum |
| Mount Type | Deck Mount |
| Body | 4 Inch Centers |
| Catridge Spindle | Classic |
| Nozzle Type | Cast Spout |
| Nozzle Length | 8 Inches |
| Handle | Double Lever Handle |
| Inlet | 1/2″ Npt Female |

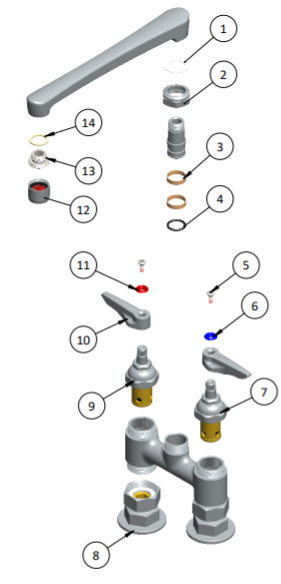

Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
C8145.01.04 | Swivel Washer | Sign In To View Price | In Stock | |
| 2 |
|
C8145.01.05 | Swivel Sleeve | Sign In To View Price | In Stock | |
| 3 |
|
C8139 | Oval ( Raised Head) Nylock Screw for Handle | Sign In To View Price | out of stock | |
| 4 |
|
C8137 | Cold Index (Blue) | Sign In To View Price | In Stock | |
| 5 |
|
6O-E71C-9QCD | Quarter Turn Cartridge w/ spring check LHC (COLD) | Sign In To View Price | out of stock | |
| 6 |
|
C8121 | 1/2″ NPT Female Eccentric Flange Assembly With Washer | Sign In To View Price | In Stock | |
| 7 |
|
0B-IE1E-SF0D | Quarter Turn Cartridge w/ spring check RHC(HOT) | Sign In To View Price | out of stock | |
| 8 |
|
KP-NB68-25F6 | Lever for Pre Rinse Spindle Assembly | Sign In To View Price | In Stock | |
| 9 |
|
C8136 | Hot Index (Red) | Sign In To View Price | In Stock | |
| 10 |
|
C8506.51 | 2.20 GPM Aerator Holder Sub-Assembly | Sign In To View Price | In Stock |
