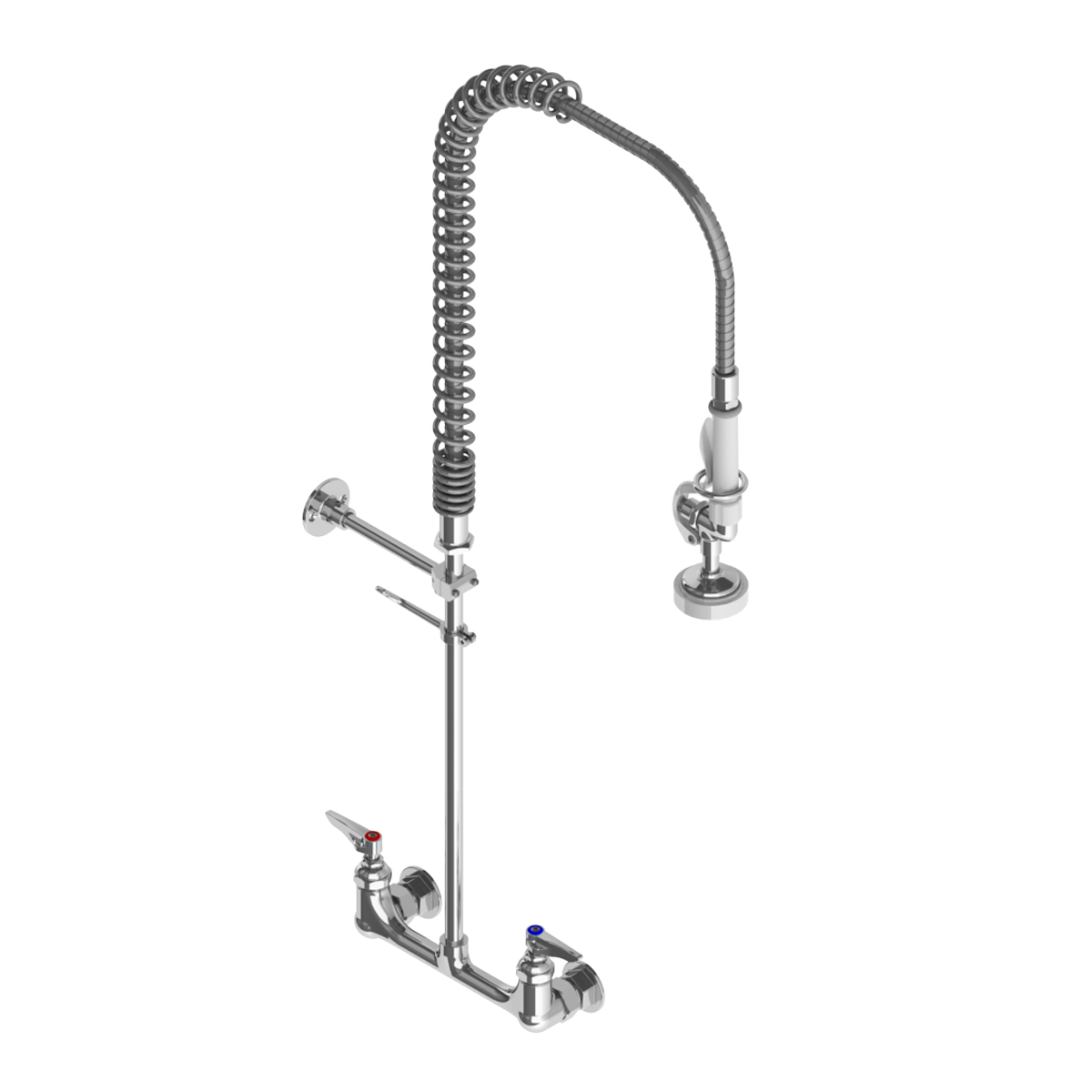

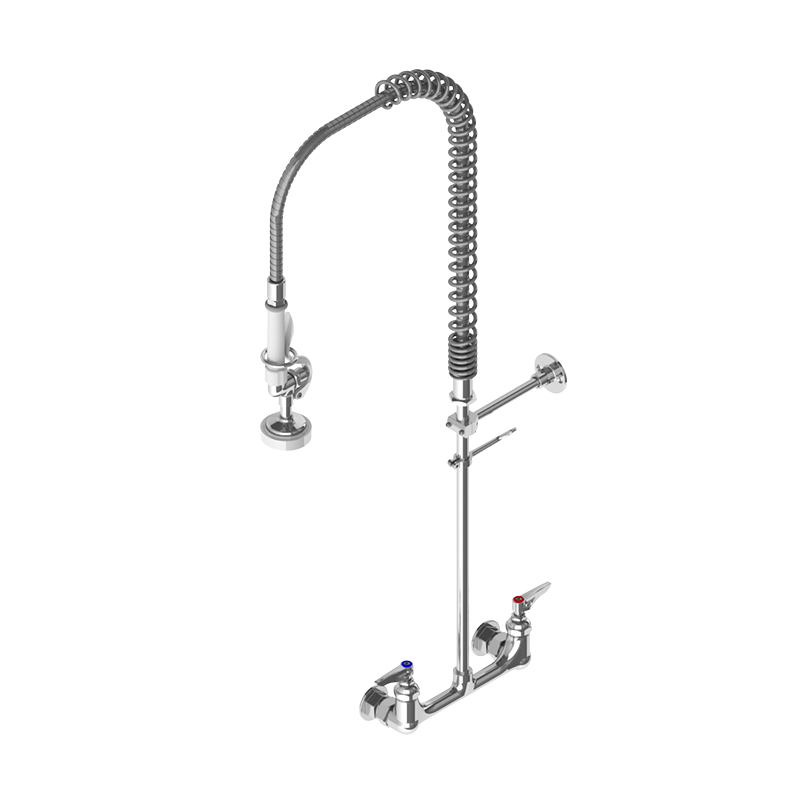

Pre-Rinse Unit: 1.42 GPM, 8″ Center Wall Mount-With CERAMIC CARTRIDGE
Sign In To View Price
Variation with Cartridge versions:
| Product code | Product Name |
| C8198 | Pre-Rinse Unit: 1.42 GPM, 8″ Center Wall Mount-With CLASSIC CARTRIDGE |
| C8198-CE | Pre-Rinse Unit: 1.42 GPM, 8″ Center Wall Mount-With CERAMIC CARTRIDGE |
- Details
- Specifications
- Replacement Parts
Wall mounted pre-rinse unit with 1.42 GPM Spray valve and 8 inch center. This commercial pre rinse sprayer is a must have in all food service kitchens for easy and efficient dish washing.
- Built-in Quarter Turn Cartridges
- Includes 1/2″ NPT Female Inlet
- Inlet Kit Sold Separately
- Includes 6″ Wall Mount Bracket
- 1.42GPM @ 60PSI Spray Valve Also options Available in Spray Valves i.e, 1.2 GPM and 4.50 GPM
- Lever Handles with Color Coded Red & Blue Indexes
- 44″ Stainless Steel Flexible Hose with Heat Resistant Grip Handle
- Faucet with 8″ Centers mixing faucet with polished chrome plated brass body
- 18″ Riser Tube
Pre-Rinse Unit: 1.42 GPM, 8″ Center Wall Mount- With CERAMIC CARTRIDGE
CERAMIC CARTRIDGE: Ceramic Cartridge’s consistency grade is more pure then others materials. It stands up to very high temperature.
- Higher Adaptability and Durable.
- With Better Performance then Classic Cartridge.
- With Inbuilt Check Value.
Features
- you can improve your workflow with the more efficient cleanup process.
- Stainless steel braided inner hose protecting the hose from splitting in use
- Consistent performance and reliable
- Special single nozzle low-flow pre-rinse spray faucet nozzle which can be controlled independently
- Saving 50% water compared to other models in the market
- Designed to remove food waste from dishes prior to dishwashing.
- Outer spring Provide extra support to pipe.
- Pressure Min: 20 psi (1.38 bar)
- Pressure Max: 125 psi (8.62 bar)
- Low Lead Content is Max – 0.25%
- Finish in Polished Chrome
- Material in Brass
- Inlet 1/2″ Female and has Adjustable Centers
Warnings / Instructions
| Material | Lead Free Brass |
| Finish | Polished Chrome |
| Series | Platinum |
| Spray Valve Flow | 1.42 GPM |
| Mount Type | Wall Mount |
| Wall Bracket | 6 Inch Wall Bracket |
| Material | Brass |
| Nozzle Length | Less Nozzle |
| Finish | Polished Chrome |
| Body | 8 Inch Centers |
| Riser Tube | 7 Inch |
| Catridge Spindle | Ceramic |
| Handle | Double Lever Handle |
| Inlet | 1/2" NPT Female |

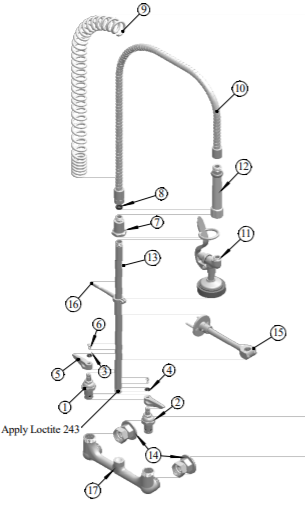

Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
0B-IE1E-SF0D | Quarter Turn Cartridge w/ spring check RHC(HOT) | Sign In To View Price | out of stock | |
| 2 |
|
6O-E71C-9QCD | Quarter Turn Cartridge w/ spring check LHC (COLD) | Sign In To View Price | out of stock | |
| 3 |
|
C8136 | Hot Index (Red) | Sign In To View Price | In Stock | |
| 4 |
|
C8137 | Cold Index (Blue) | Sign In To View Price | In Stock | |
| 5 |
|
KP-NB68-25F6 | Lever for Pre Rinse Spindle Assembly | Sign In To View Price | In Stock | |
| 6 |
|
C8139 | Oval ( Raised Head) Nylock Screw for Handle | Sign In To View Price | out of stock | |
| 7 |
|
89-W96R-X6F4 | Spring Holder | Sign In To View Price | In Stock | |
| 8 |
|
I0-FM4V-P1VG | Pre-Rinse Hose Washer- (Pack of 12) | Sign In To View Price | In Stock | |
| 9 |
|
X7-0BGA-VOC9 | Pre-Rinse Faucet Spring | Sign In To View Price | In Stock | |
| 10 |
|
KL-2K54-ONEQ | 44″ SS Flexible Pipe for Pre-Rinse Faucet, Less Handle | Sign In To View Price | In Stock | |
| 11 |
|
C8149 | Spray Valve for Pre Rinse 1.42 GPM, 5.37 LPM | Sign In To View Price | In Stock | |
| 12 |
|
C8042.21 | Extention For Pre Rinse Spray Head – Male Thread | Sign In To View Price | In Stock | |
| 13 |
|

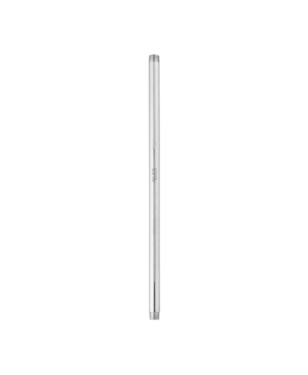

26-6LB2-HLNL | 18″ Long x 3/8 MPT – Riser Tube | Sign In To View Price | In Stock | |
| 14 |
|
C8121 | 1/2″ NPT Female Eccentric Flange Assembly With Washer | Sign In To View Price | In Stock | |
| 15 |
|
IF-4MGF-6J86 | 6″ Wall Mount Bracket For Upright Pre Rinse | Sign In To View Price | In Stock | |
| 16 |
|
OH-KQNT-4NHW | Pre Rinse Spray Head Riser Tube Hook | Sign In To View Price | In Stock |
