Pre-Rinse Unit: Short Height, Single Hole Deck Mount, High Flow Spray Valve-With CERAMIC CARTRIDGE
Sign In To View Price
Variation with Cartridge versions:
- Details
- Specifications
- Replacement Parts

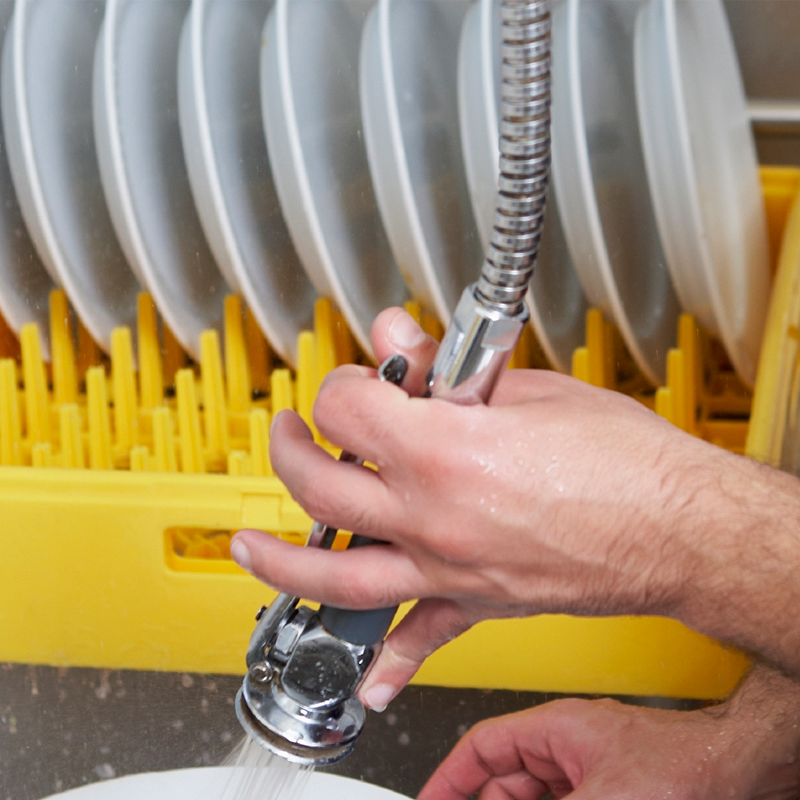

Ecoline Pre-rinse unit in shorter height and deck-mount style.
- Single Lever Faucet w/ Hot & Cold Indicators
- Includes 6″ Wall Mount Bracket
- Hi-Flow Spray Valve 4.50GPM @ 60PSI also option available in Spray Valve i.e, 1.2 GPM and 1.42 GPM
- Designed to remove food waste from dishes prior to dishwashing.
- 7″ Riser Tube
- 24″ Stainless Steel Flexible Hose with Heat Resistant Grip Handle
Pre-Rinse Unit, 8″ Center Deck Mount- With CERAMIC CARTRIDGE
CERAMIC CARTRIDGE: Ceramic Cartridge’s consistency grade is more pure then others materials. It stands up to very high temperature.
- Higher Adaptability and Durable.
- With Better Performance then Classic Cartridge.
- With Inbuilt Check Value.
Features
- Includes 18″ Stainless Steel Supply Hose
- 24″ flexible stainless steel hose w/ heat resistant black handle and hold down ring
- 18″ rigid riser
- Lever handles w/ color coded screws
- Quarter-turn ceramic cartridges
- Stainless steel braided inner hose protecting the hose from splitting in use
- Heavy duty cross head tap
- Pre Rinse Spray Head Riser Tube Hook
- With faucet which can be controlled independently
- Spray gun with protection buffer
Warnings / Instructions
| Material | Lead Free Brass |
| Finish | Chrome Plated |
| Series | Ecoline |
| Spray Valve Flow | 4.50 GPM |
| Mount Type | Deck Mount |
| Wall Bracket | 6 Inch Wall Bracket |
| Body | Single Hole |
| Riser Tube | 18 Inch |
| Catridge Spindle | Ceramc |
| Handle | Single Lever Handle |
| Inlet | 1/2'' NPT Female |
| Inlet | Adjustable Centers |
| Pressure Max | Pressure Max: 125 psi (8.62 bar) |
| Pressure Min | Pressure Min: 20 psi (1.38 bar) |
| Series | Geometrical Series |
Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
OH-KQNT-4NHW | Pre Rinse Spray Head Riser Tube Hook | Sign In To View Price | In Stock | |
| 2 |
|
IF-4MGF-6J86 | 6″ Wall Mount Bracket For Upright Pre Rinse | Sign In To View Price | In Stock | |
| 3 |
|
HI-99NC-XGHE | Compact Pre-Rinse Spring | Sign In To View Price | In Stock | |
| 4 |
|
KL-2K54-ONEQ | 44″ SS Flexible Pipe for Pre-Rinse Faucet, Less Handle | Sign In To View Price | In Stock | |
| 5 |
|
C8249 | High Flow Pre-rinse spray Valve 4.50 GPM, 17 LPM | Sign In To View Price | In Stock | |
| 6 |
|
89-W96R-X6F4 | Spring Holder | Sign In To View Price | In Stock | |
| 7 |
|
PF-3D4A-KI2V | Check Valve for 15mm OD Copper Tubing Assembly | Sign In To View Price | In Stock |
