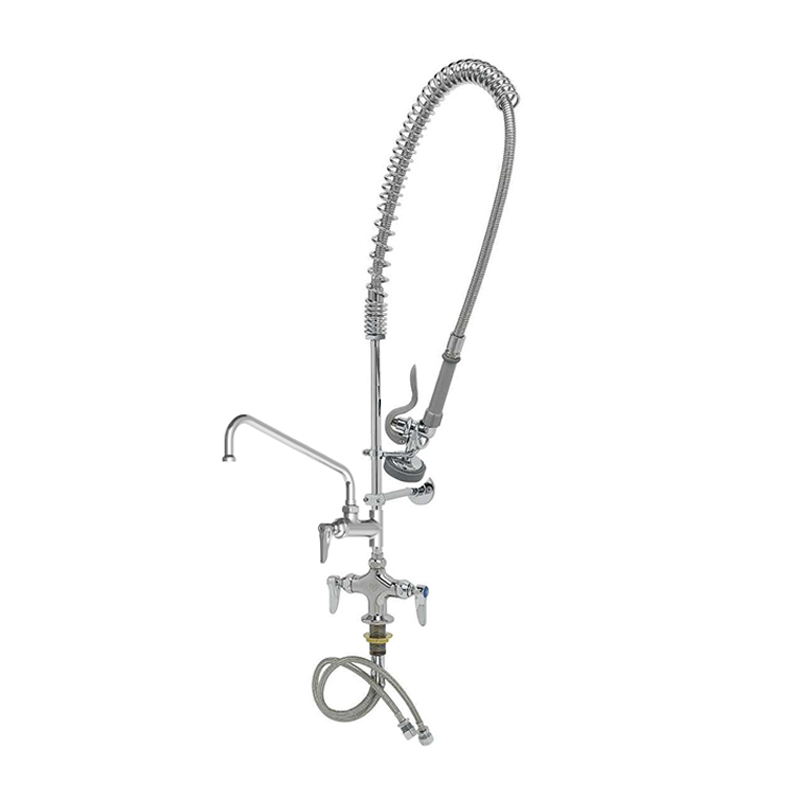

This deck-mount pre-rinse unit has an 8-inch center that comes with a changeable1.15 GPM spray valve.
- Improve your workflow with the more efficient cleanup process
- 6″ Wall Mount Bracket For Upright Pre Rinse
- 8 ” Add on Faucet
- Built-in Quarter Turn Cartridges
- Heavy-duty crosshead tap
- Inlet Kit Sold Separately
- Stainless steel braided inner hose protecting the hose from splitting in use
- Lever Handles with Color Coded Red & Blue Indexes
- 24″ Stainless Steel Flexible Hose with Heat Resistant Grip Handle
Replace free flow aerators with the below Aerators as per your requirement
Features
- Saving 50% water compared to other models in the market
- Designed to remove food waste from dishes prior to dishwashing
- specialty product for the food service industry
- Inlet 1/2″ NPT Female and has adjustable centers
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Low Lead Content- Max – 0.25
| Material | Lead Free Brass |
| Finish | Chrome Plated |
| Series | Platinum |
| Spray Valve Flow | 1.15 GPM |
| Mount Type | Deck Mount |
| Wall Bracket | 6 Inch |
| Body | Single Hole |
| Add on Faucet Length | 8 Inches |
| Riser Tube | 7 Inch |
| Catridge Spindle | Classic |
| Handle | Double Lever Handle |
| Nozzle Type | Swivel |
| Inlet | 1/2" NPT Female |
Downloads
- Instruction ManualInstruction Manual Download Instruction Manual
- Warranty: Four Year (Limited)Warranty: Four Year (Limited) Download Warranty: Four Year (Limited)
- Specification Sheet Specification Sheet Download Specification Sheet
- Line Drawing Line Drawing Download Line Drawing
- Exploded View Exploded View Download Exploded View
- CAD FileCAD File Download CAD File
